Cubic Filber Media
Cubic fiber media are manufactured with the synthetic material of polypropylene yarn.
They register excellent filtration performance as they form pores optimized for eliminating floating particles from water. They also demonstrate excellent cleaning efficiency and long duration with durability acquired with a chemically stable material and through the thermosetting process.
Feature
| Sortation | Feature | SAND | |
|---|---|---|---|
| Material | Polyolefin (PP, PE) | - Excellent chemical stability with acid resistance, alkali resistance. - Light weight : specific weight of 0.85-0.9 with weight of 70㎏/㎥ | 2200 kg |
| Manufacturing | Blended fabrics-felt-thermosetting | - Pores: minimum 92% - Durability: replacement cycle of minimum 2 years - repeated cleaning of minimum 3,000 times | 20% |
| Form | Cubic Type | Stirring and cleaning: Reduce cleaning time and minimize cleaning water. Application: Fill various facilities | backwashing |
| Efficiency | 5~50 ㎛ pore | - Collection and filtration : 10~15kg/㎥ - high-speed and low-pressure filtration realized : LV 70m/kr, 2kg/㎠ - Upward filtration system | 2~3 kg 20~30 ㎛ |

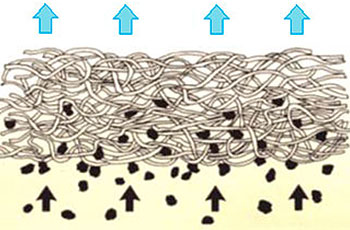

Fiber Media Tissue and Mechanism

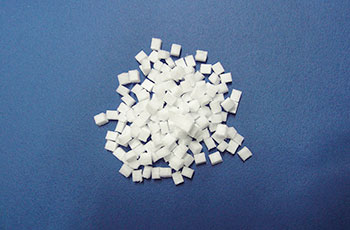

Formed as 5㎜ or 7㎜ cubes, they are suitable for cleaning through stirring and are easy to filling or replacement.
The pores with minimum 92% penetration collect and filter floating particles, and enable high-speed upward filtration as they involve nearly no pressure loss.
Polyolefin resin is woven and thermoset to minimize deformity from cleaning through stirring.

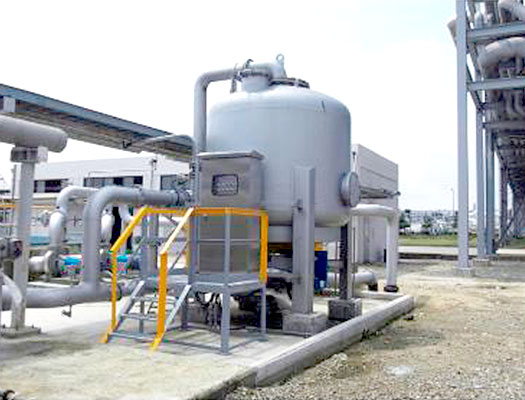

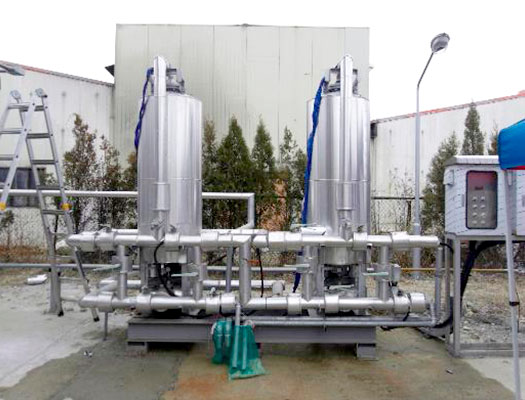

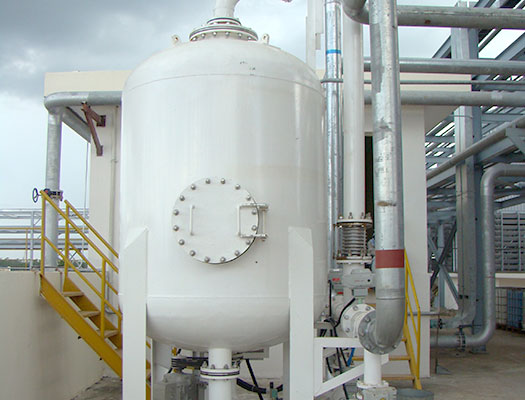

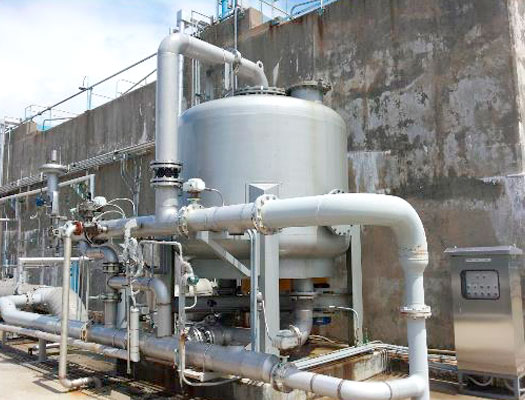

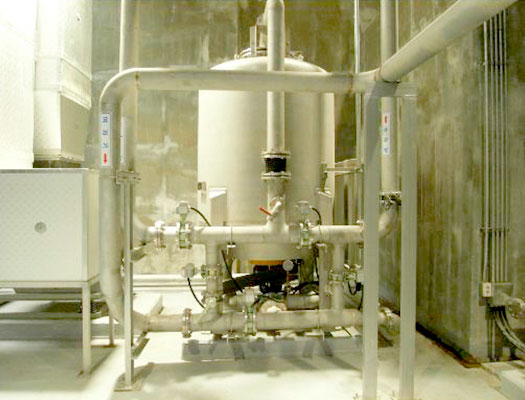

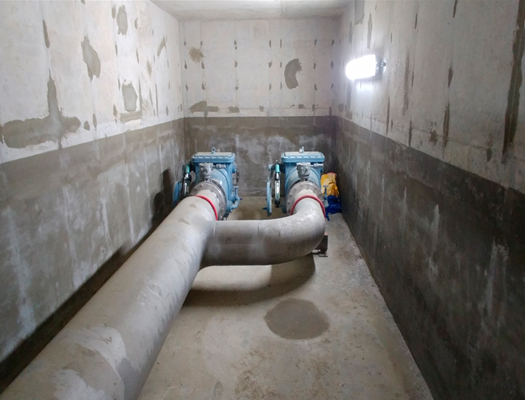

Case of Application

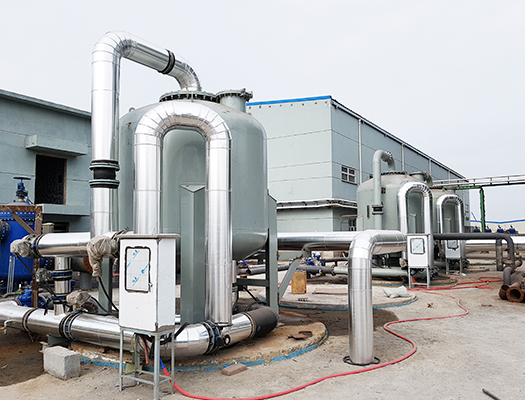

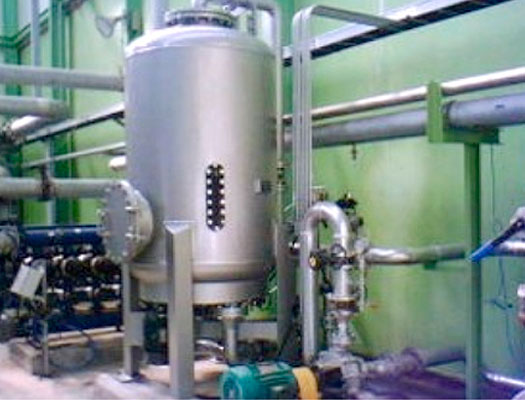

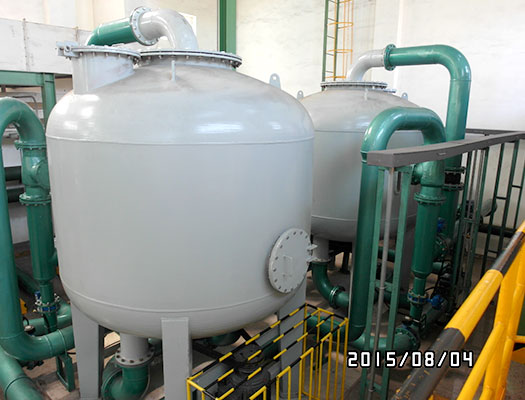

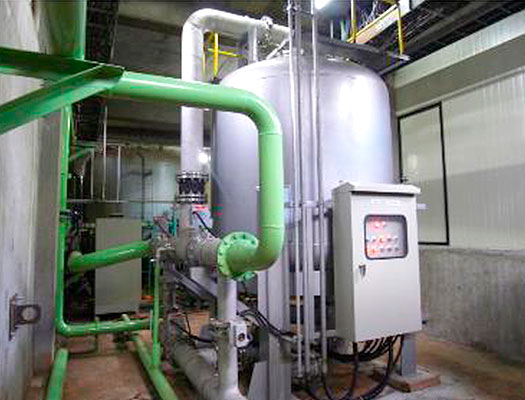

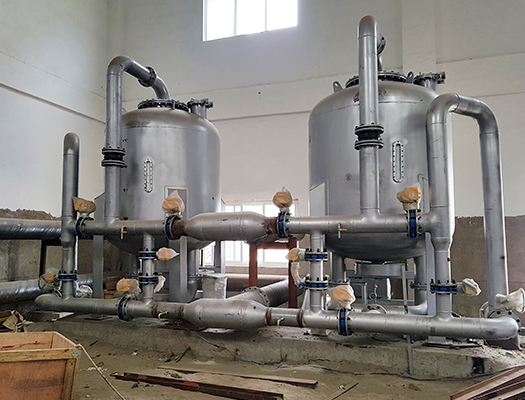

▣ Industrial Water
Water treatment at industrial sites by filtering water sources such as rivers, lakes, and groundwater.

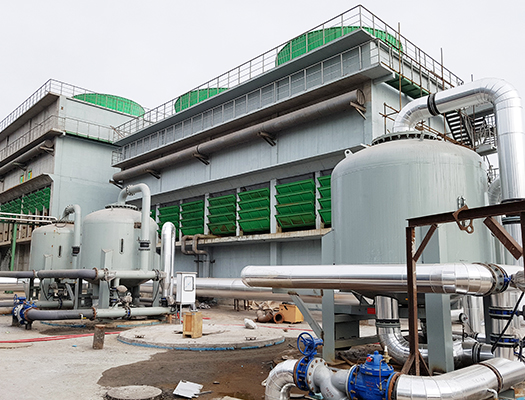

▣ Water Circulation
The side-stream system for reusing and recycling water is applied to improve water quality and reduce water use and wastewater generation.

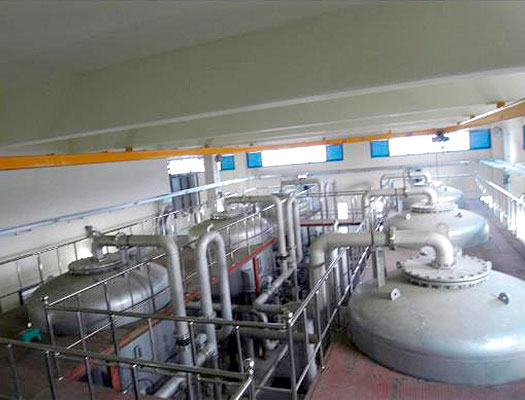

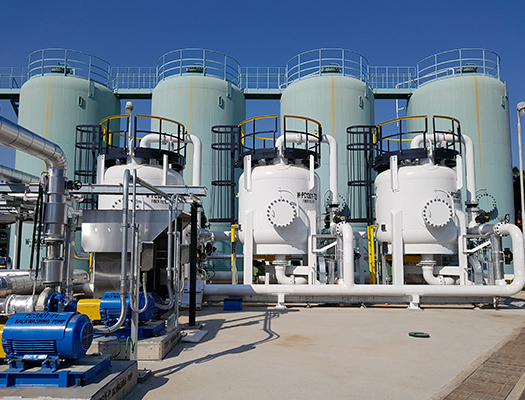

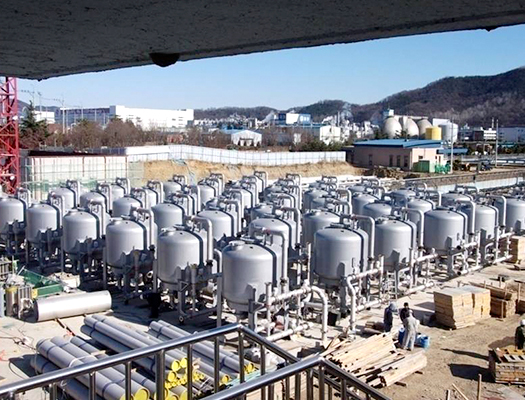

▣ Wastewater
To improve the quality of wastewater treatment and to apply it to reuse treatment.

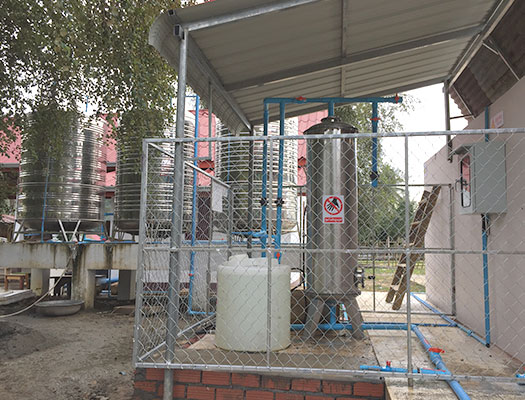

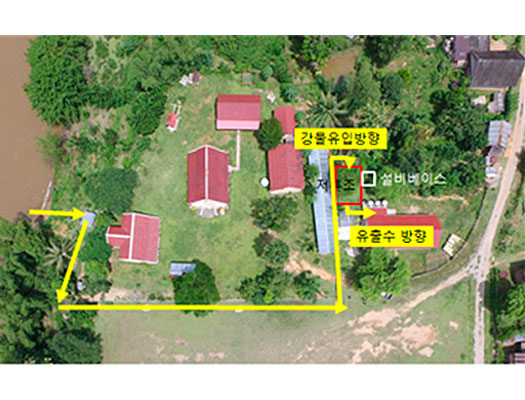

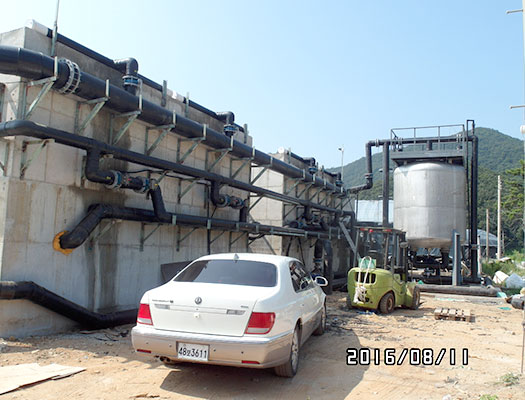

▣ LivingㆍAgricultureㆍFisheries

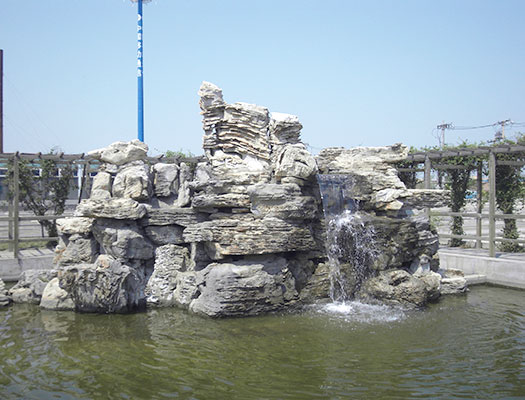

Applicable to water treatment of living conditions such as village waterworks, fisheries farms, smart farms, landscaping, and swimming pools.

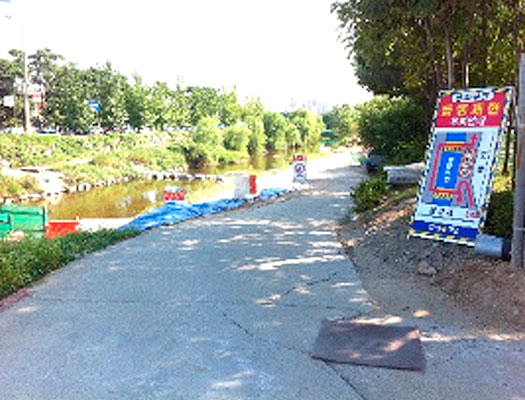

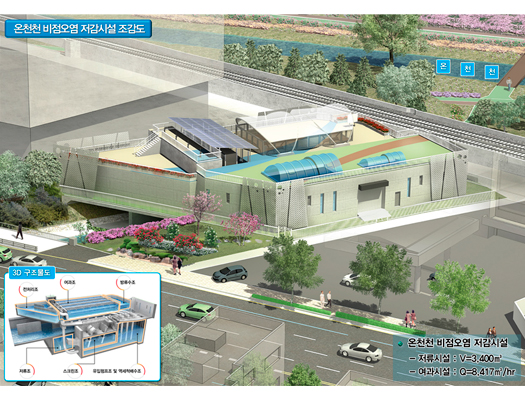

▣ Rivers · Lakes
Application to the removal of suspended matter flowing into rivers and lakes through rainwater and daily pollution.
